NAME | PICTURE | DESCRITPION | REMARK |

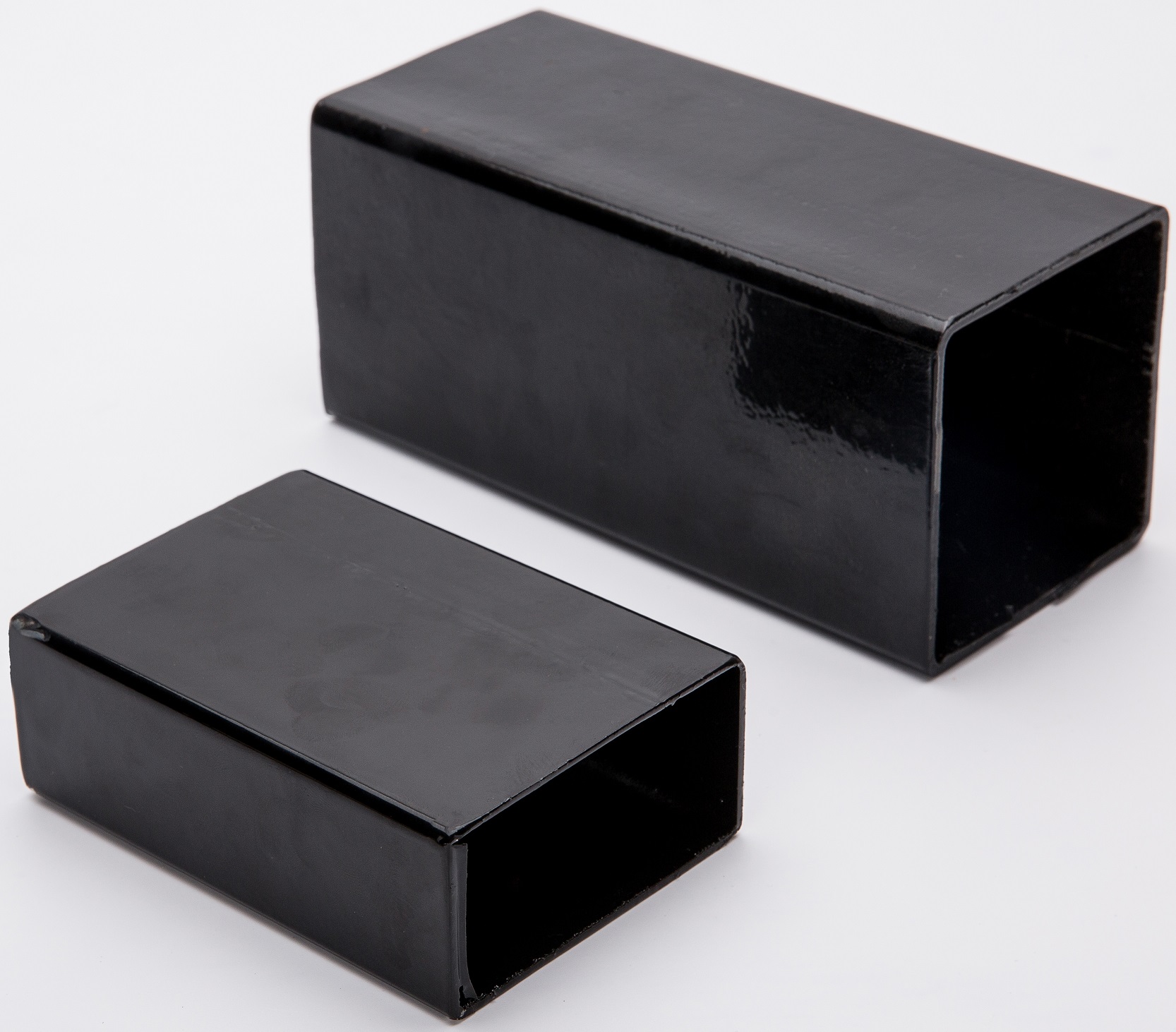

Frame |
|
The main frame will be used at the top leg part, the support frame mostly used at bottom and walking way. | |

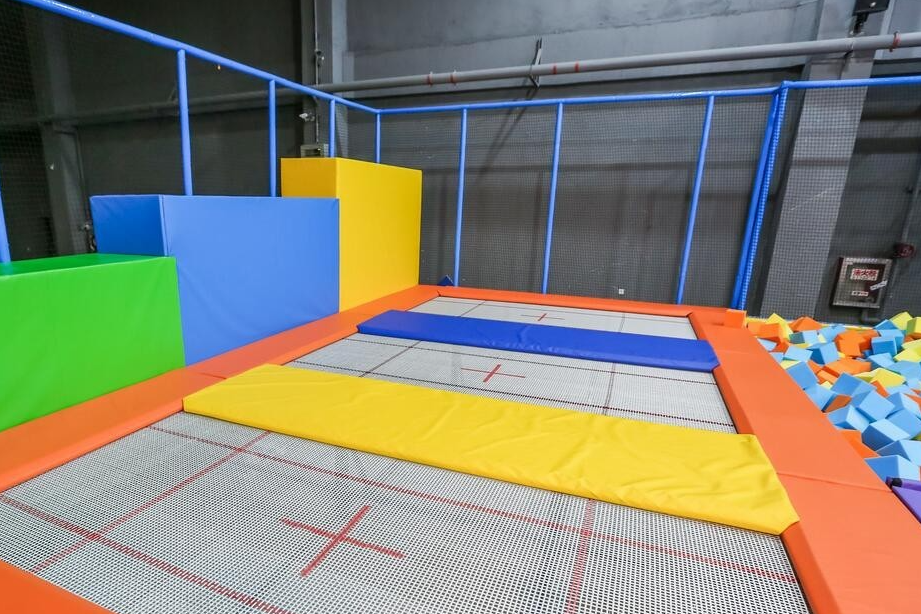

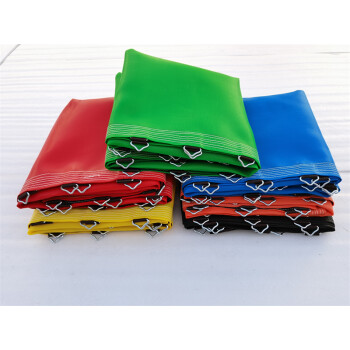

Jumping Mat |
1. Stadard Jumping Mat: Made from PP, Imported from the USA, and another type is PVC rubbering, can be black, blue, yellow, green and yellow color. |
Standard mats widely used at free jump, dodgeball, basketball area. And the high preformance normally used at professional and parkour area. | |
Spring | Galvanized Steel Wire, Dia 3.1mm Normal Tramp: L21.5cm Pro-Tramp: L26cm and L30cm Garden Tramp: 17cm |
All springs can be any color and size. | |

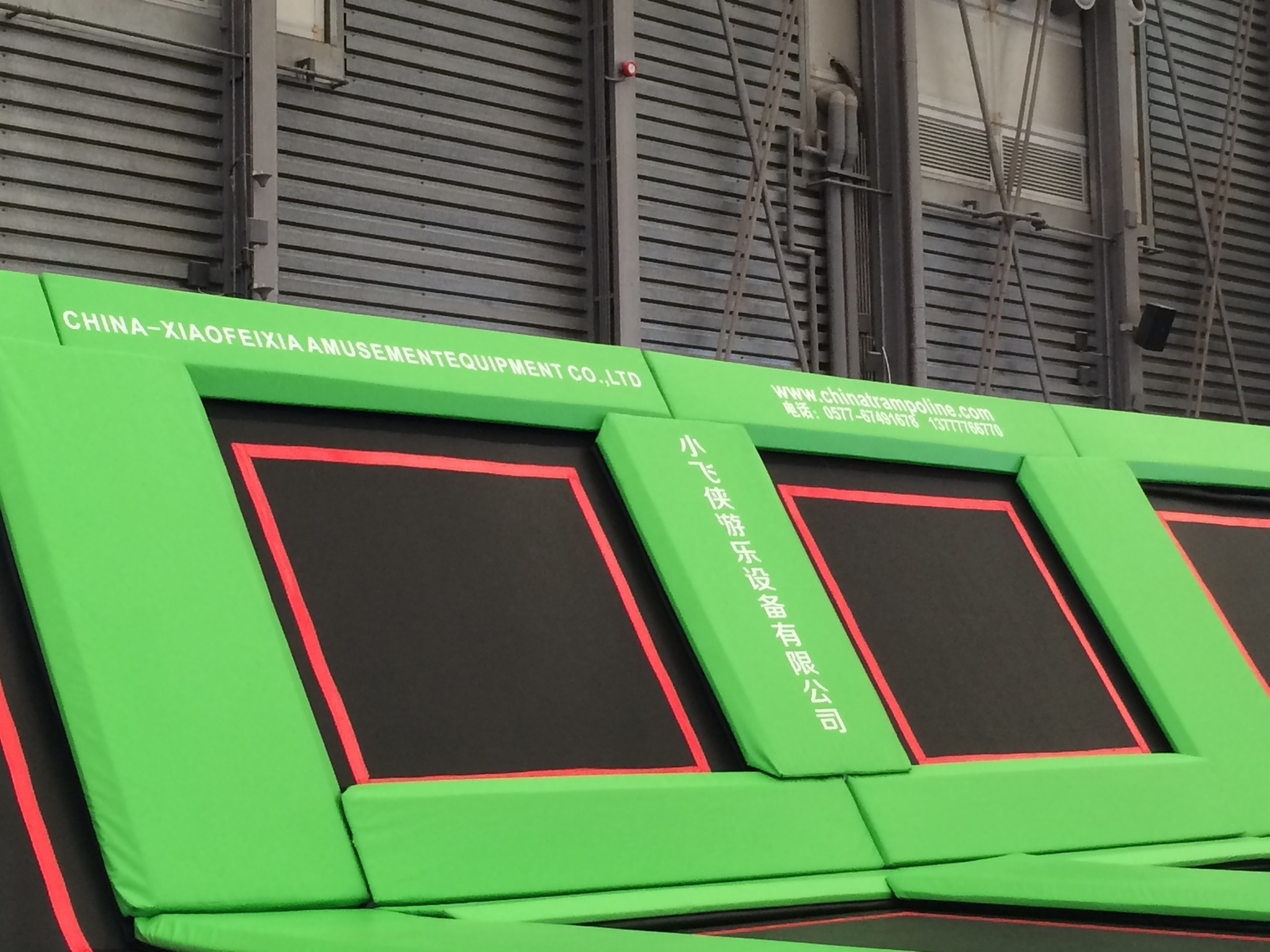

Safety Pad | 0.55mm thick PVC cover with EPE foam, back with Zipper structure, also can be cable tie and elastic rope , standard EPE foam thick is 7CM and 20cm | Different area will be used different thickness and materials | |
Safety Netting | Polyester material, with holes 4*4cm( can be customized size) | ||
Pipe Cover | Pipe cover /Tube cover is for the safety netting structure, thickness 12-15mm. | Any regular color is available | |
Walking Way | Frame structure consisted of 50*50*2mm square shape tube, top coverd by 2cm thick wooden board, and the surface materials can be EVA mat, PVC flooring, grass, etc | Artwork accordingly to the ASTM and TUV standard. |
